New for 2016
Scroll Down| Click an image to enlarge → |  |  |  |
|---|---|---|---|

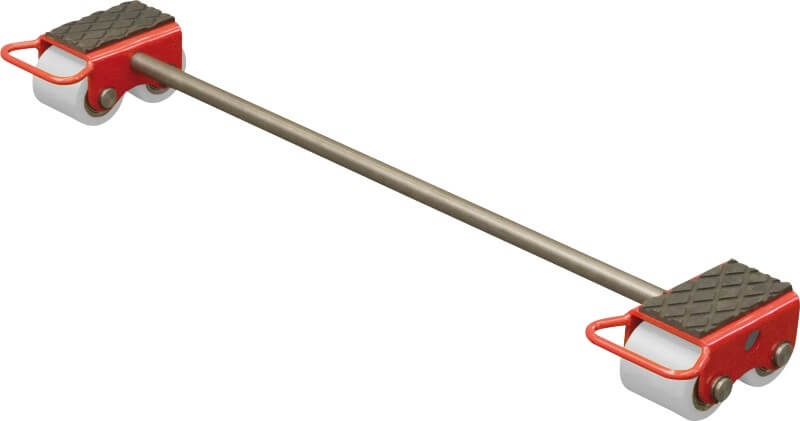

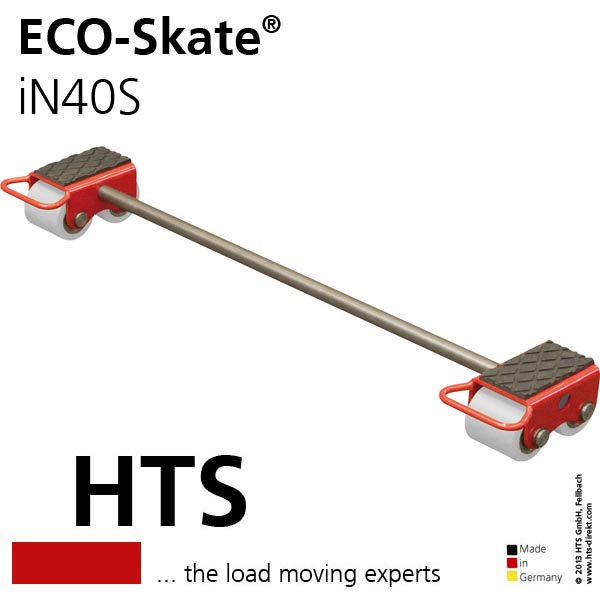

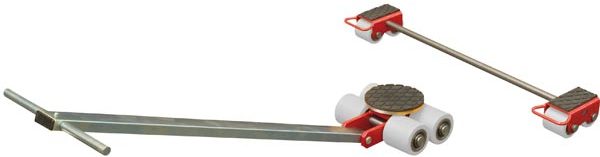

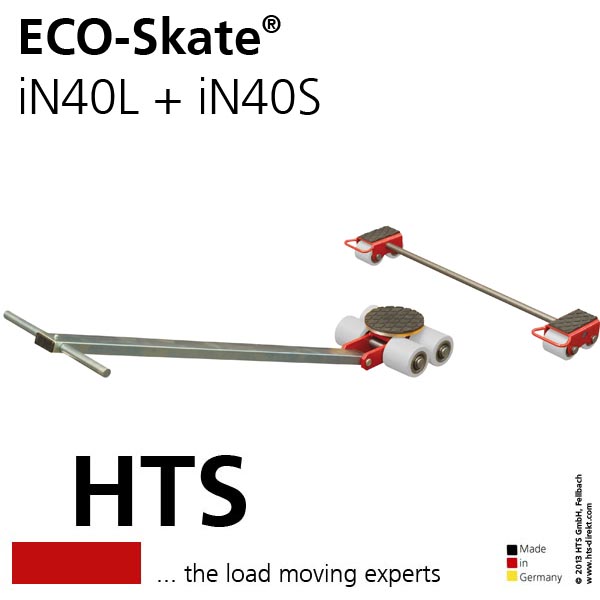

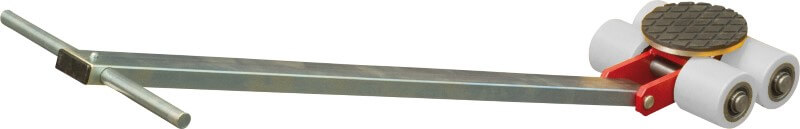

| Type | iN40L | iN40S | iN40S and iN40L Set |
| Part number | 10.040.01.10 | 10.040.01.20 | |
| Capacity (lbs.) | 8.800 | 2 x 4,400 | 17,600 lbs. |
| Wheels size (inch) | 3.3" X 3.4" Nylon | 3.3" X 3.4" Nylon | |
| Number of wheels | 4 | 2 x 2 | |
| Load area (inch) | 5.9" | 5.9" X 3" | |
| Dimensions L x W x H (inch) | 9.3" X 9.4" X 4.3" | 9.0" X 5.2" X 4.3" | |
| Handle length (inch) | 39.4" | - | |
| Adjustability (inch) | - | 10.4" to 39.3" | |
| Weight (lbs.) | 26.5 | 24 |
New for 2016
Scroll Down| Click an image to enlarge → |  |  |  |
|---|---|---|---|

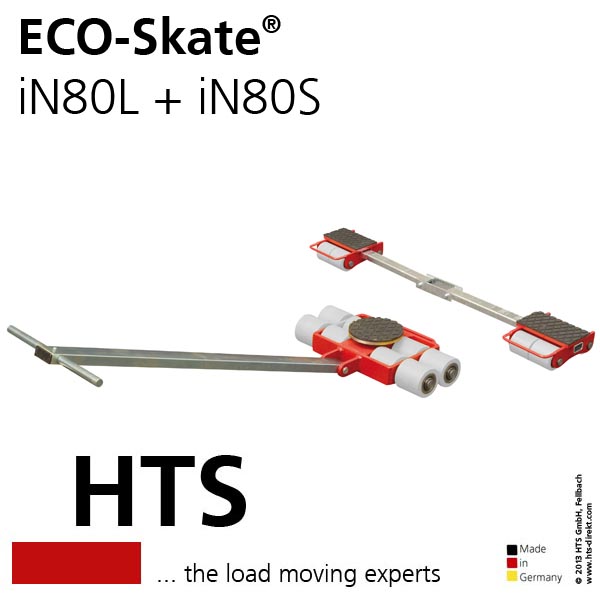

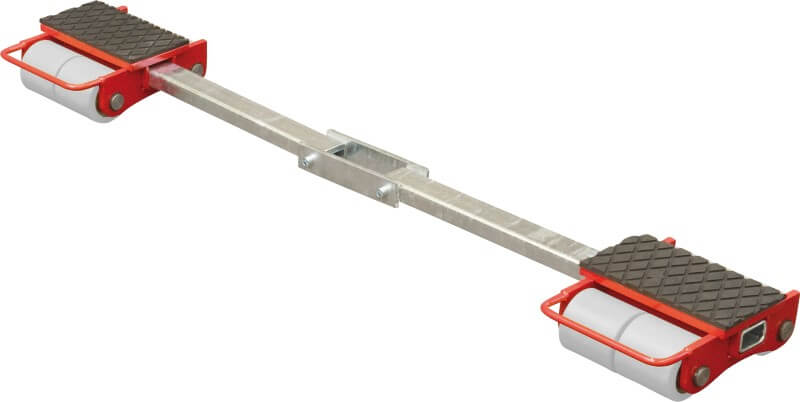

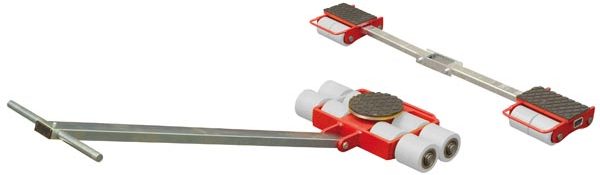

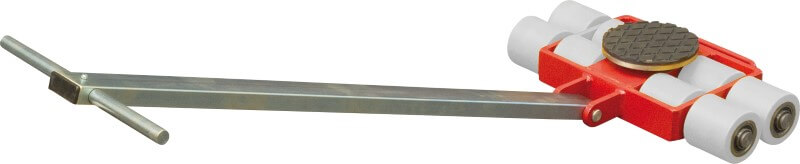

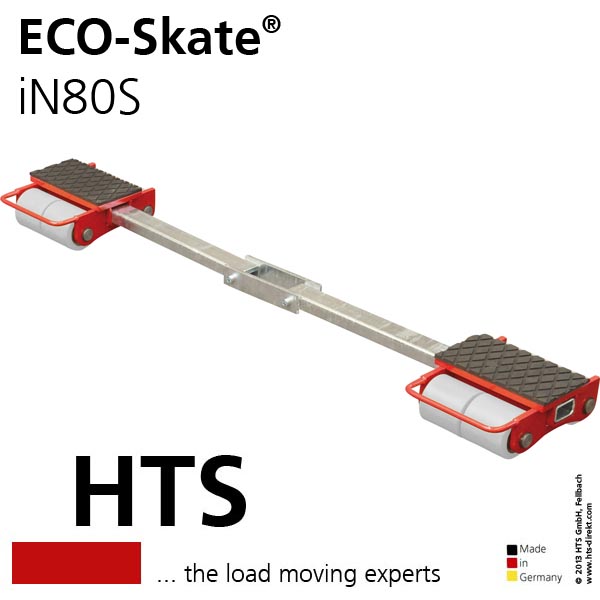

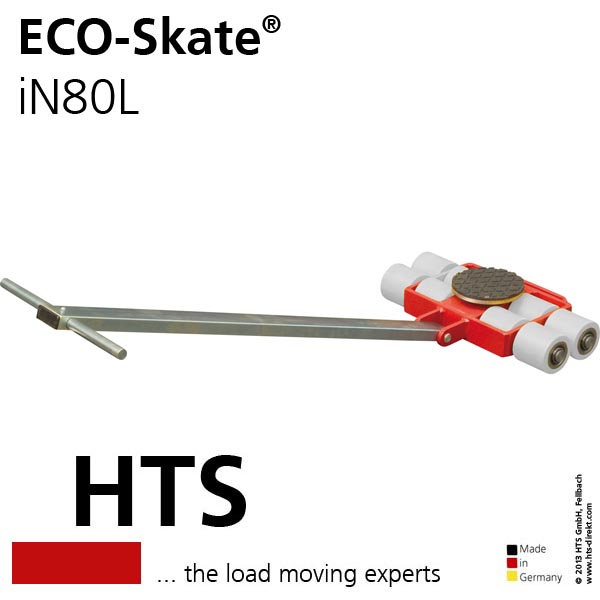

| Type | iN80L | iN80S | iN80S and iN80L Set |
| Part number | 10.080.01.10 | 10.080.01.20 | |
| Capacity (lbs.) | 17,600 | 2 x 8,800 | 35,250 lbs. |
| Wheels size (inch) | 3.3" X 3.4" Nylon | 3.3" X 3.4" Nylon | |
| Number of wheels | 8 | 2 x 4 | |
| Load area (inch) | 5.9" | 4.7" X 8.7" | |
| Dimensions L x B x H (inch) | 13.5" X 18.9" X 4.3" | 11.5" X 8.7" X 4.3" | |
| Handle length (inch) | 39.4" | - | |
| Adjustability (inch) | - | 16.5" to 43.3" | |
| Weight (lbs.) | 46 | 53 |
New for 2013
Scroll Down| Click an image to enlarge → |  |  |  |
|---|---|---|---|

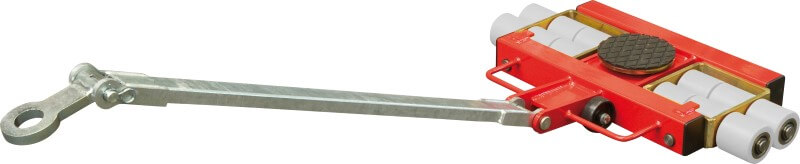

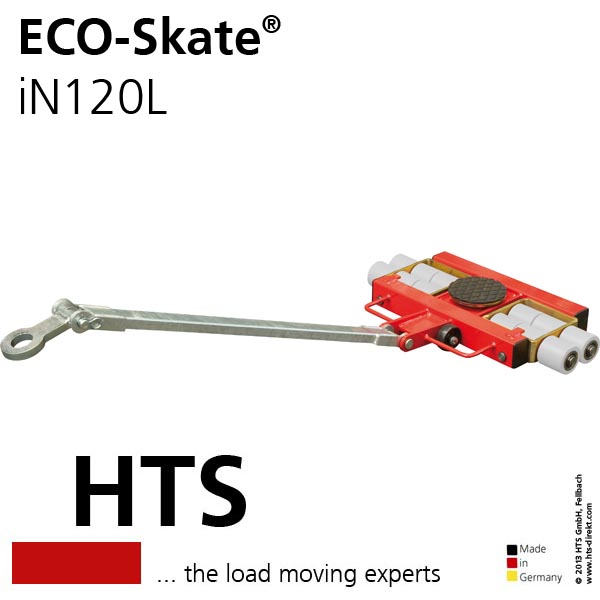

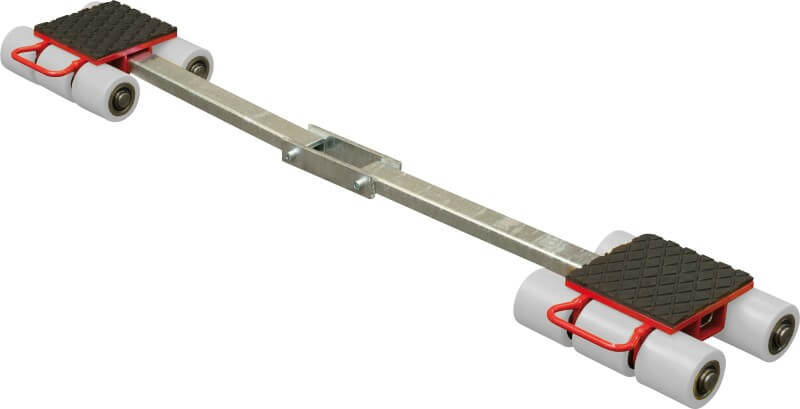

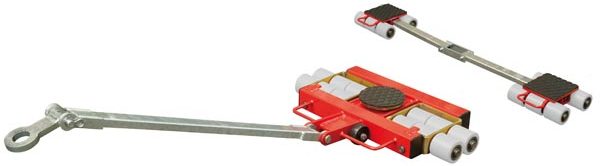

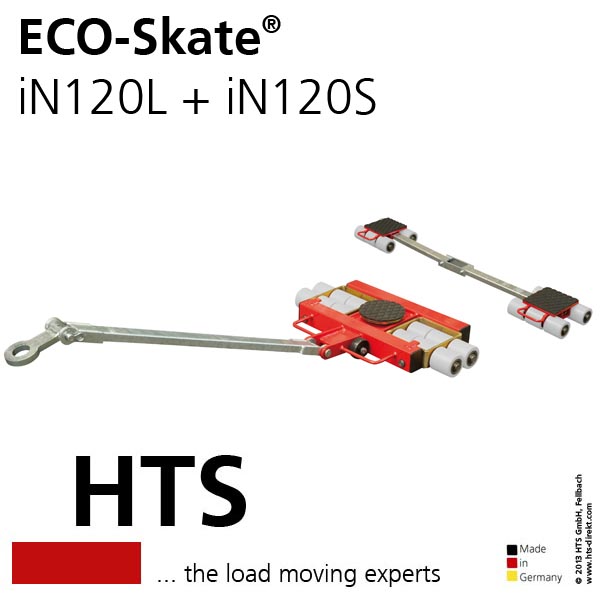

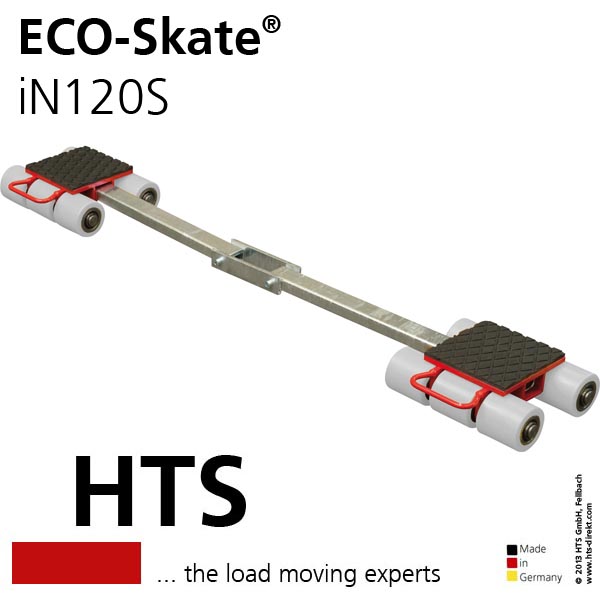

| Type | iN120L | iN120S | iN120S and iN120L Set |
| Part number | 10.120.01.10 | 10.120.01.20 | |
| Capacity (lbs.) | 26,450 | 2 x 13,200 | 52,900 lbs. |
| Wheels size (inch) | 3.3" X 3.4" Nylon | 3.3" X 3.4" Nylon | |
| Number of wheels | 12 | 2 x 6 | |
| Load area (inch) | 6.7" | 7.1" X 7.5" | |
| Dimensions L x W x H (inch) | 20.8" X 30.4" X 4.3" | 11.6" X 11.6" X 4.3" | |
| Handle length (inch) | 47.2" | - | |
| Adjustability (inch) | - | 18.1" to 43.3" | |
| Weight (lbs.) | 110 | 60 |
New for 2016
Scroll Down| Click an image to enlarge → |  |  |  |
|---|---|---|---|

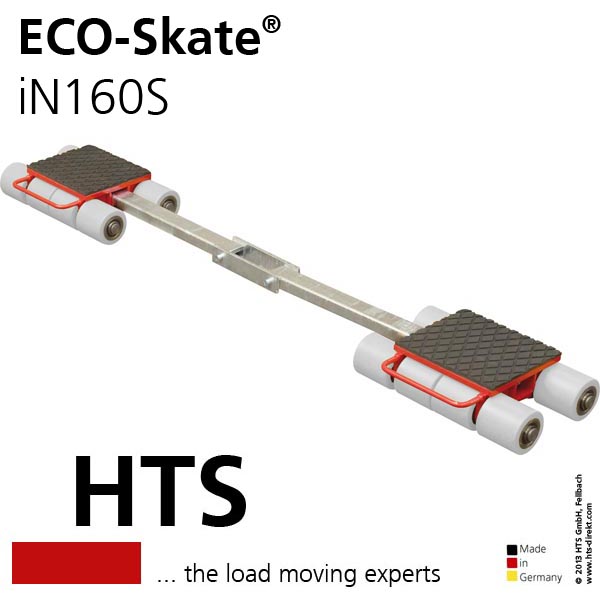

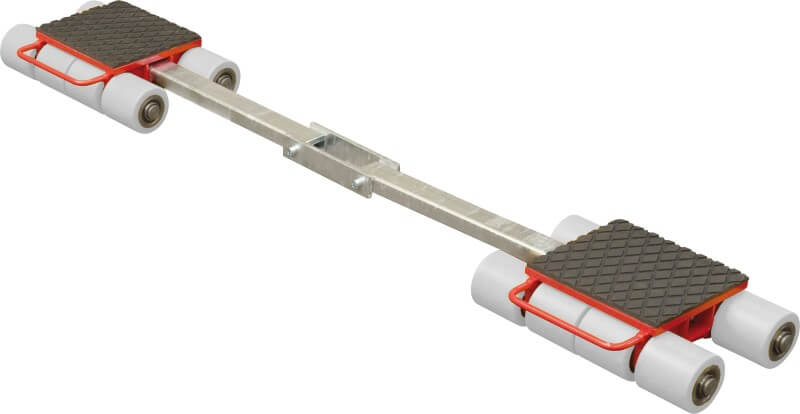

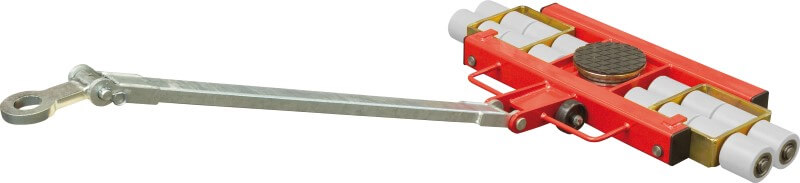

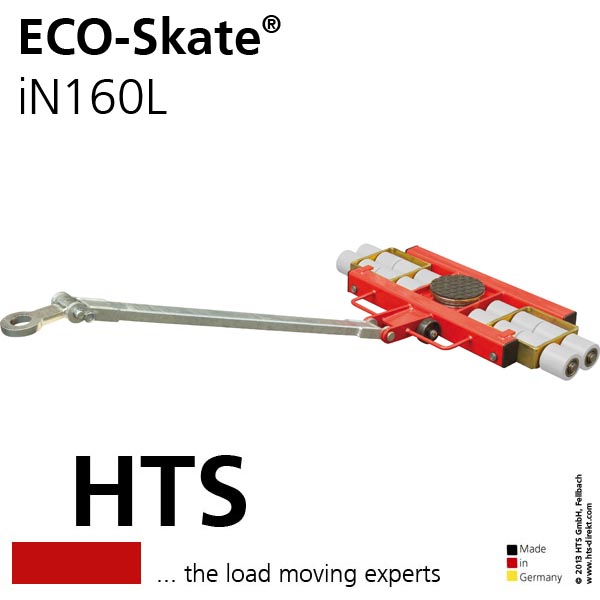

| Type | iN160L | iN160S | iN160S and iN160L Set |
| Part number | 10.160.01.10 | 10.160.01.20 | |
| Capacity (lbs.) | 35,250 | 2 x 17,600 | 70,500 lbs. |
| Wheels size (inch) | 3.3" X 3.4" Nylon | 3.3" X 3.4" Nylon | |
| Number of wheels | 16 | 2 x 8 | |
| Load area (inch) | 6.7" | 7.9" X 8.7" | |
| Dimensions L x W x H (inch) | 20.8" X 38.6" X 4.3" | 11.5" X 15" X 4.3" | |
| Handle length (inch) | 47.2" | - | |
| Adjustability (inch) | - | 22" to 43.3" | |
| Weight (lbs.) | 130 | 77 |

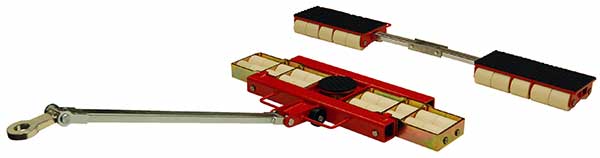

20 tons as single
Scroll Down | | |
|---|---|---|
| Type | iN200L | iN200S |
| Part number | 10.200.01.10 | 10.200.01.20 |
| Capacity (kg) | 20,000 | 2 x 10.00 |
| Wheels size (mm) | Ø 85 x 87 | Ø 85 x 87 |
| Number of wheels | 20 | 2 x 10 |
| Load area (mm) | Ø 170 | 200 x 500 |
| Dimensions L x B x H (mm) | 568 x 1.192 x 110 | 291 x 500 x 110 |
| Handle length (mm) | 1.170 | - |
| Adjustability (mm) | - | 695 - 1.403 |
| Weight (kg) | 89 | 57 |
Features
With ECO-Skate IDEAL (NY) load moving systems you are able to move loads up to 32 tons. All Skate systems are standard equipped with a steering bar and alignment bar as well as HTS nylon wheels. All ECO-Skate IDEAL (NY) skates can be combined with each other. The sum of the capacity of a single skate equals the total capacity of a system. You can get single front or rear units as well.
Load moving systems of the ECO-Skate IDEAL (NY) have the following features
- Steering and alignment bar
The IDEAL (NY) load moving systems are standard equipped with steering and alignment bars. Special lengths are availabe on request. - Foldable alignment bar
The iN80S to iN160S are supplied with a foldable alignment bar. - Combinable
All ECO-Skate IDEAL load moving systems can be combined with all other suitable skate systems such as IDEAL, ROTO and DUO. The sum of each skate equals the total carrying capacity. - HTS Nylon Wheels
All skate are standard equipped with HTS nylon wheels. They are available as spare parts for other manufactured skates as well.
For all cases where a standard product is not sufficient, we offer special tailor made solutions to fit the customers needs.
