ECO-Skate ISOCON
Load moving skates for ISO-Containers up to 48 tons (additional size on request)
Scroll Down12 or 48 tons as single or set capacity
Scroll Down| Click an image to enlarge → |  |  |  |  |
|---|---|---|---|---|

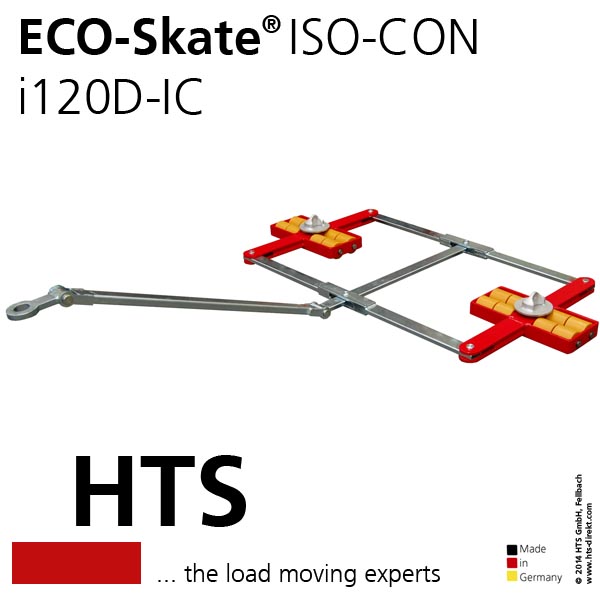

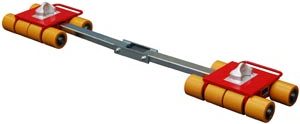

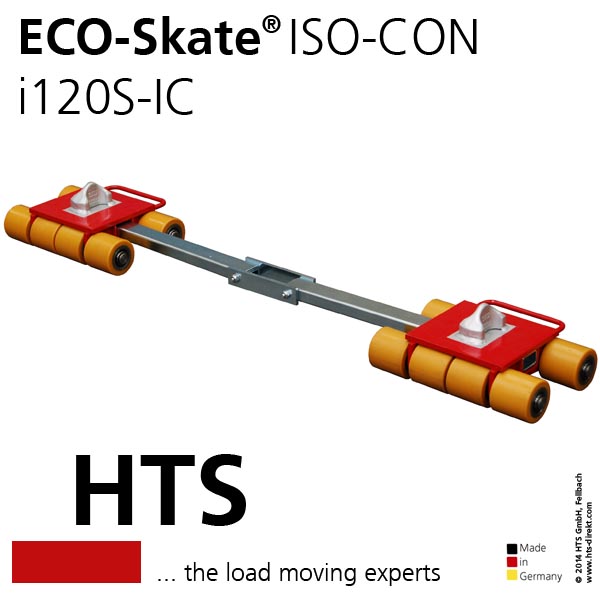

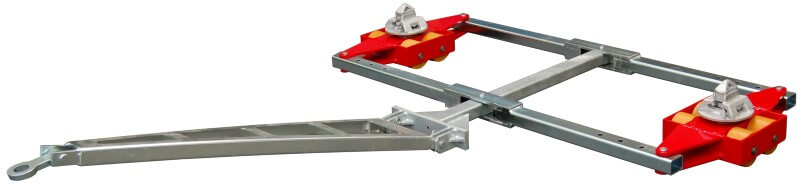

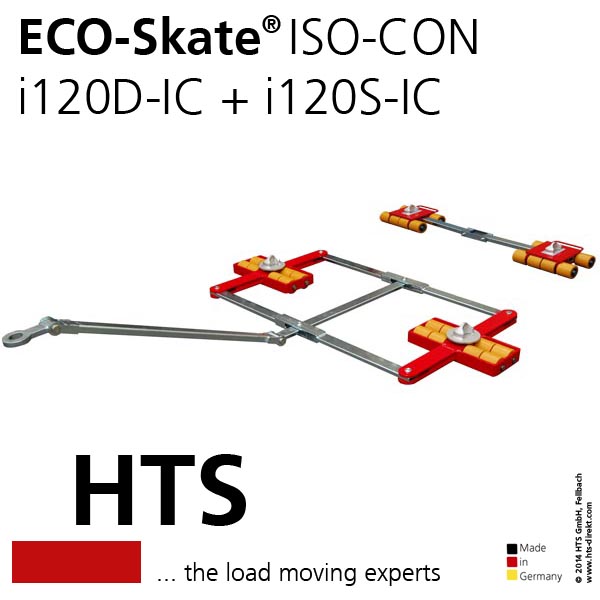

| Type | IC120D | IC120S | IC120D / IC120S Set | ISO CON Kegel |
| Part number | 10.120.00.35 | 10.120.00.25 | Container Cone with slide-off protection | |
| Capacity (lbs.) | 13,225 | 2 x 13,225 | 52,900 lbs. | |
| Wheel size (inch) | 3.3" X 3.4" | 3.3" X 3.4" | ||
| Number of wheels | 2 x 8 | 2 x 8 | ||
| Load area (inch) | 5.9" + Cone | 4.7" X 8.7" + Cone | ||
| Dimensions L x W x H (inch) | 37.5" X 108" X 6.4" | 11.5" X 15" X 6.4" | ||
| Handle length (inch) | 43.3" | - | ||
| Distance cone to cone (inch) | 88.9" | 88.9" | ||
| Weight (lbs.) | 177 | 99 |
16 or 32 tons as single or set capacity
Scroll Down| Click an image to enlarge → |  |  |  |  |
|---|---|---|---|---|

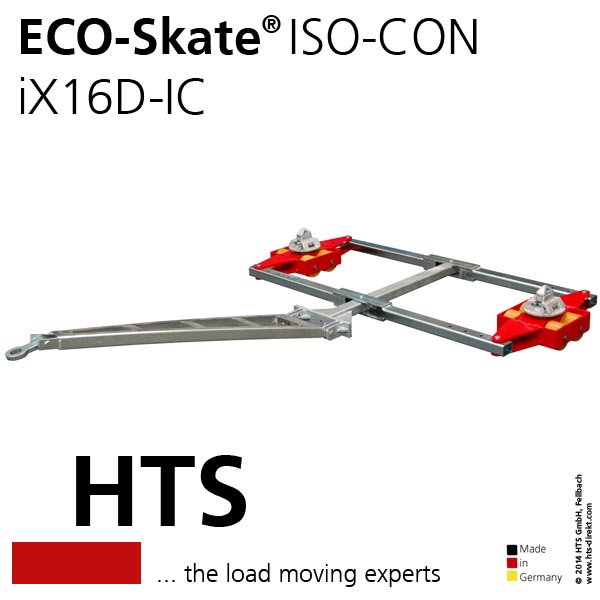

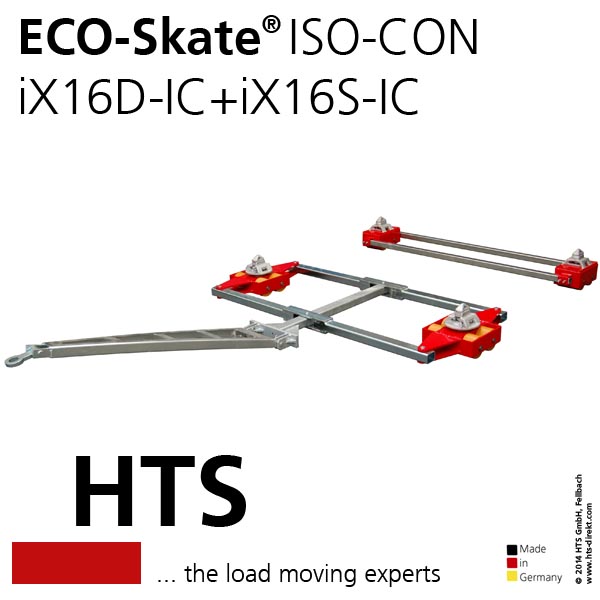

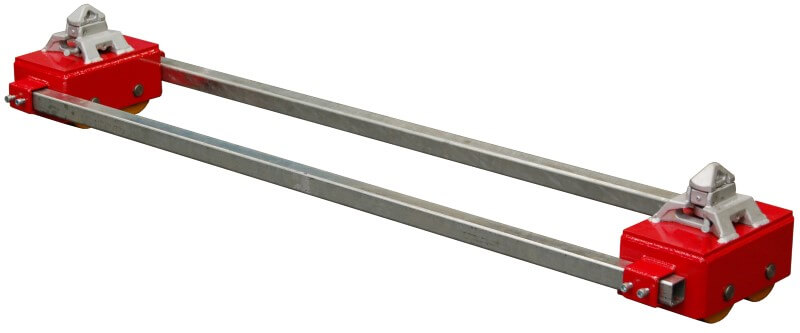

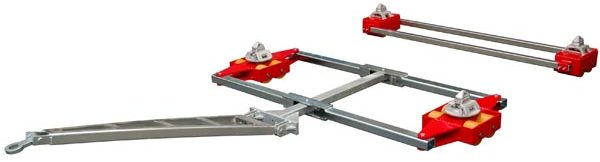

| Type | ICX16D | ICX16S | ICX16D / ICX16S Set | ISO CON TLS |
| Part number | 10.160.02.35 | 10.160.00.25 | Slide-off protection with TLS Twist-Lock-System | |
| Capacity (lbs.) | 2 x 17,630 | 2 x 17,630 | 70,500 lbs. | |
| Wheel size (inch) | 5.5" X 3.3" | 5.5" X 3.3" | ||
| Number of wheels | 2 x 4 | 2 x 4 | ||
| Load area (inch) | 6.7"+ TLS* | 12.7" X 7.7" + TLS* | ||
| Dimensions L x W x H (inch) | 34.7" X 103.5" X 11.2" | 18.3" X 8.5" X 11.2" | ||
| Handle length (inch) | 59" | - | ||
| Distance cone to cone (inch) | 88.9" | 88.9" | ||
| Weight (lbs.) | 421 | 229 |
*TLS: Twist Lock System

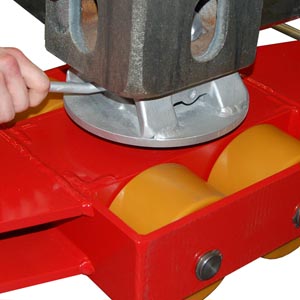

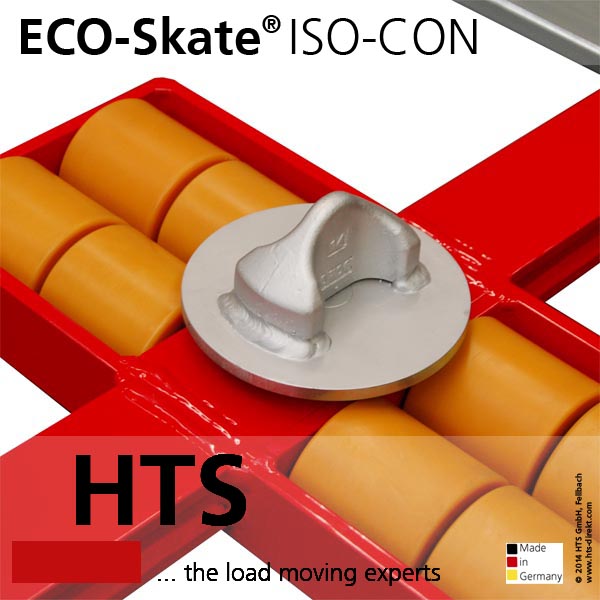

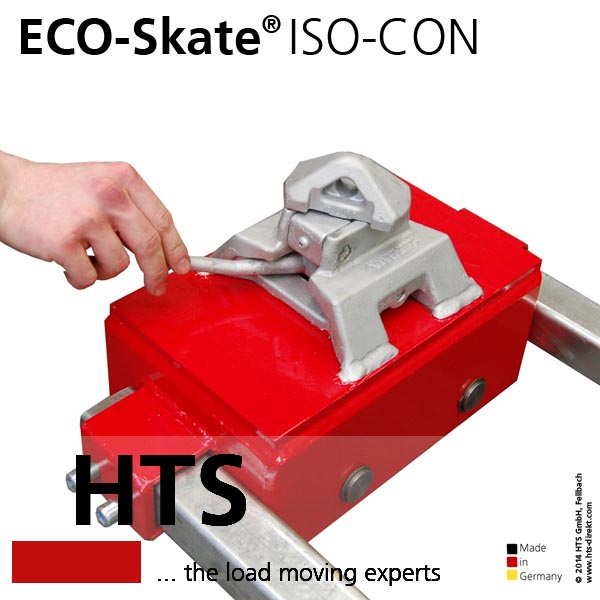

The ECO-Skate ISO-CON and ECO-Skate ISO-CON XL Load moving systems are ideal for the ISO-Container transport. The skates can be modified to any size of the containers. Both the ECO-Skate ISO-CON and ISO-CON XL container skates are equipped with high quality HTS polyurethane wheels. The ECO-Skate ISO-CON, Skates for containers, with 3.3″ X 3.4″ polyurethane wheels, come with container cones which secure the containers from sliding off the skates. The bigger and stronger ECO-Skate ISO-CON XL container skates system with 5.5″ X 3.3″ polyurethane wheels are equipped with our TLS (Twist Lock System), to lock and secure the container on the skate system.
Features
Following features are integrated in the ECO-Skate ISO-CON series:
- Pulling and alignment bars
The steerable ECO-Skate ISO-CON are delivered with a pulling bar to connect to a fork truck or other pulling device.
The alignment bars are made to fit the width of the container corners. - HTS Polyurethane wheels
All Skates are built with our high quality HTS polyurethane wheels. The wheels can be ordered individually.
Versions with HTS Nylon wheels on request. - Special dimensions
The complete system can be adjusted to any customer needs.
For all cases where a standard product is not sufficient, we offer special tailor made solutions to fit the customers needs.
