| Click an image to enlarge → |  |  |  |
|---|---|---|---|

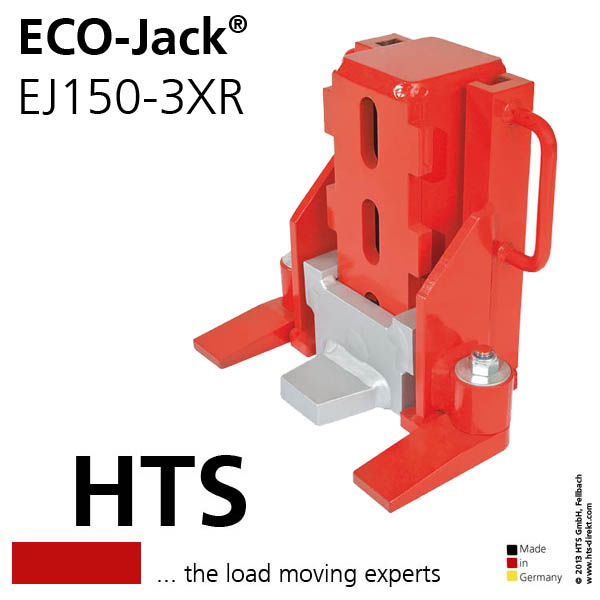

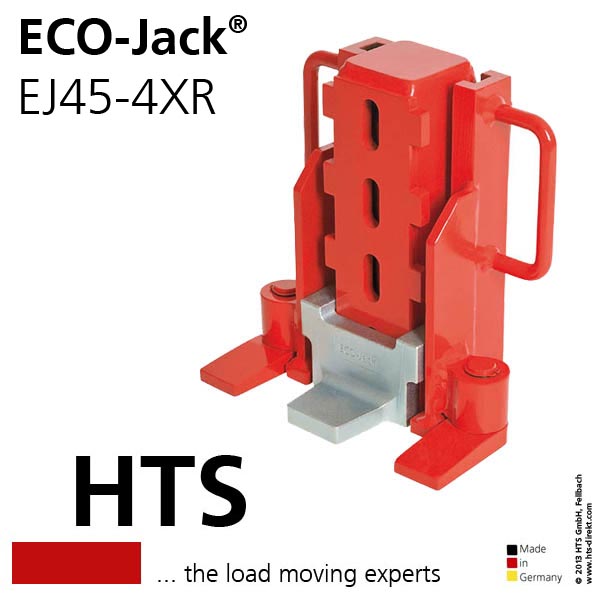

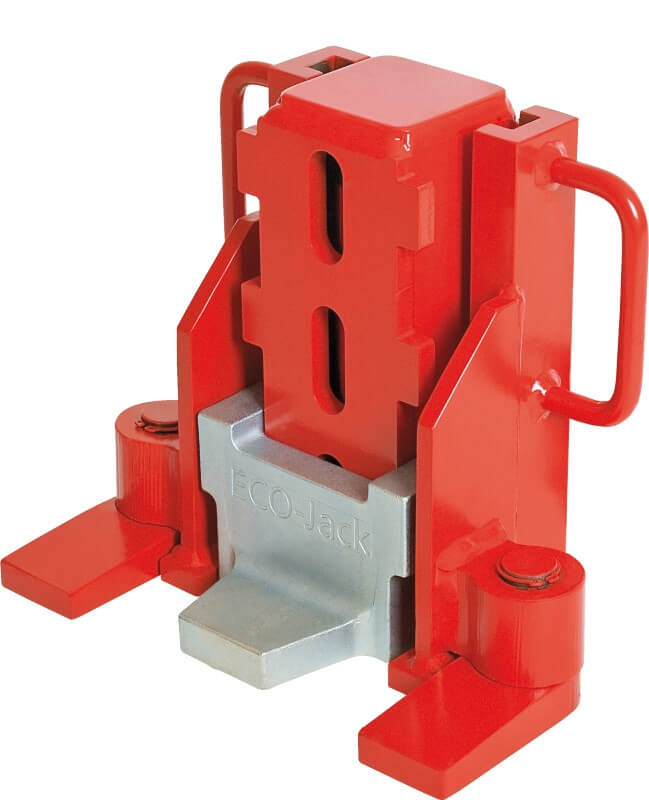

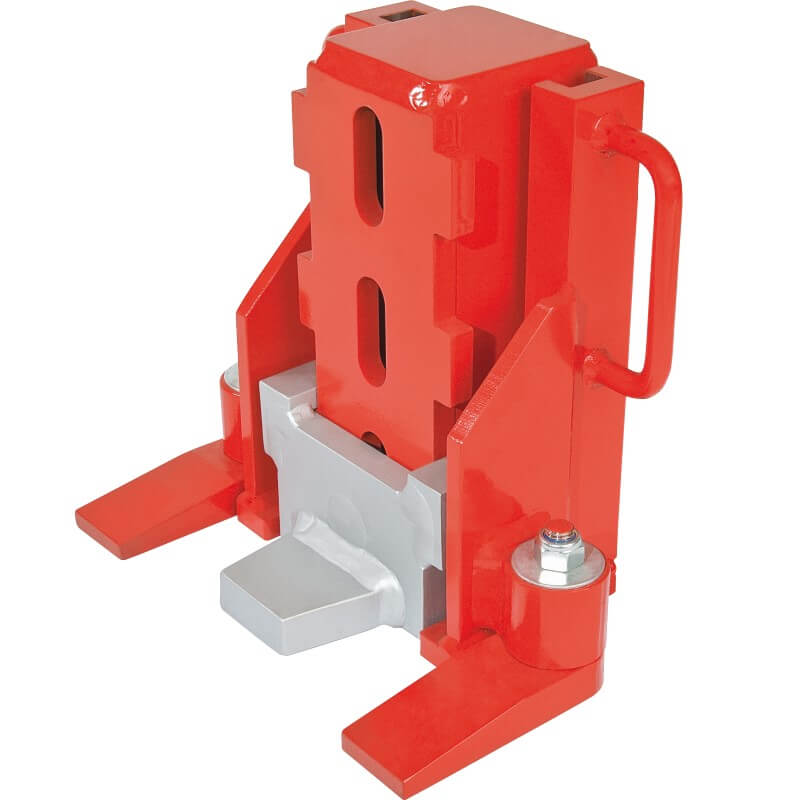

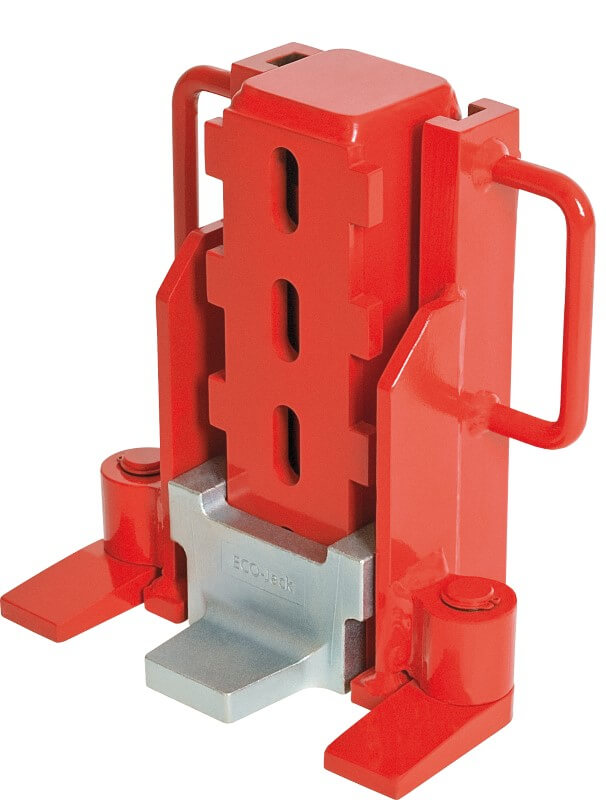

| Type | EJ45-4XR | EJ100-3XR | EJ150-3XR |
| Part number | 01.045.41.01 | 01.100.31.01 | 01.150.31.01 |
| Capacity (lbs.) | 9,900 | 22,000 | 33,000 |
| Working pressure (bar/psi) | 700/10,000 | 700/10,000 | 700/10,000 |
| Claw height (inch) | 0.6 | 0.8 | 1.0 |
| Adjustability (inch) | 4 x 2.3" | 3 x 2.9" | 3 x 3.8" |
| Stroke (inch) | 5.2" | 5.1" | 6.1" |
| Dimensions L x W x H (inch) | 7.2" X 9.0" X 9.9" | 8.6" X 10.9" X 11.1" | 9.6" X 13" X 12.4" |
| Weight (lbs.) | 30 | 51 | 88 |
| Click an image to enlarge → |  |  |  |
|---|---|---|---|

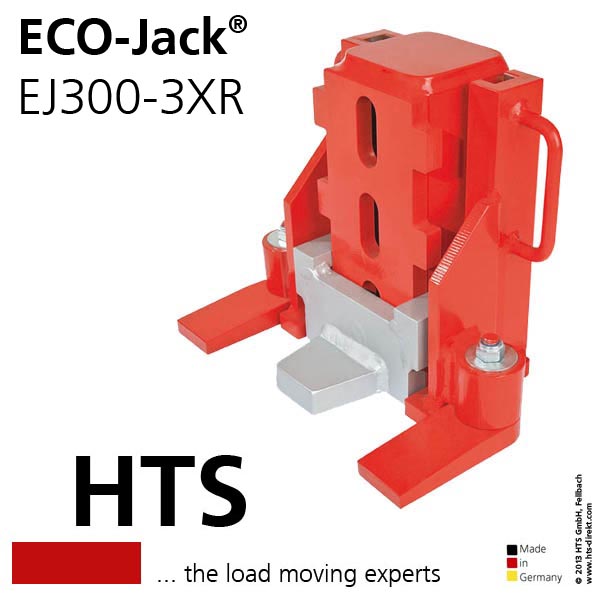

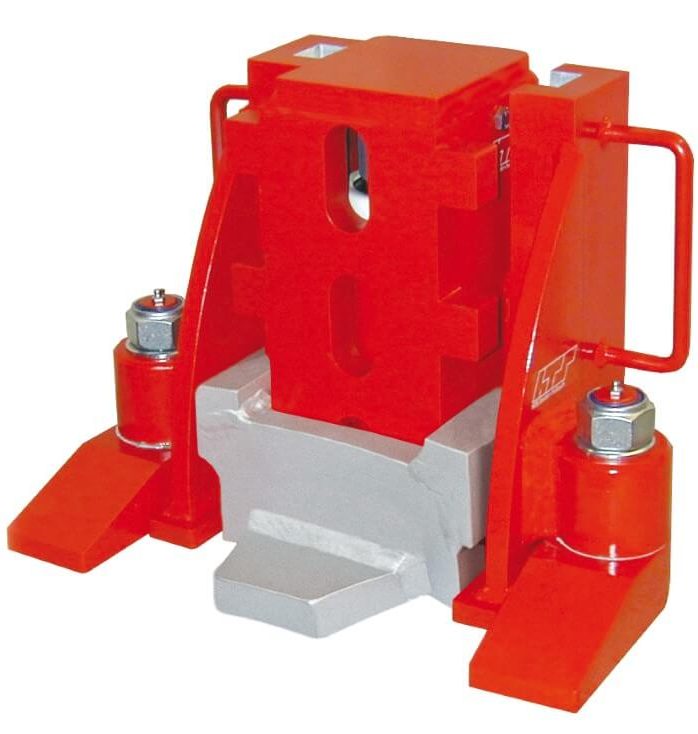

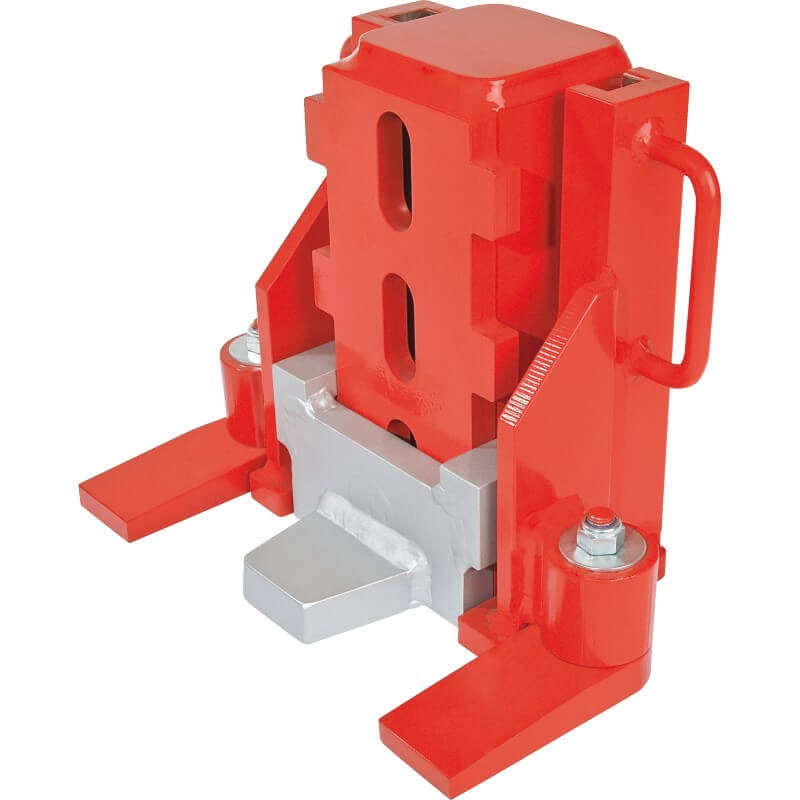

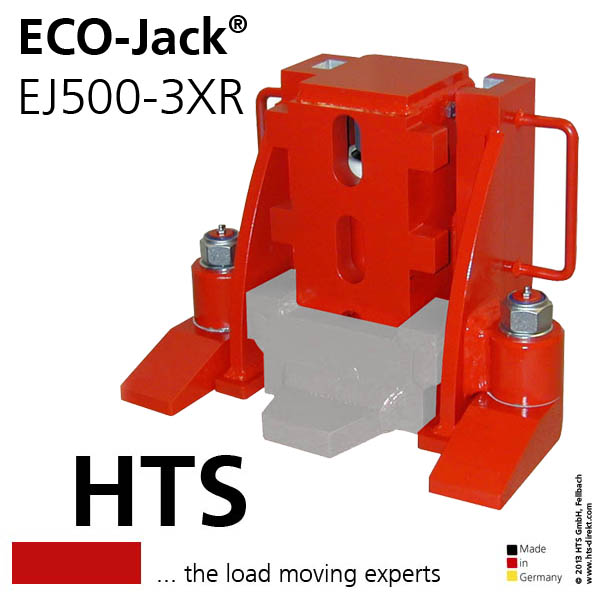

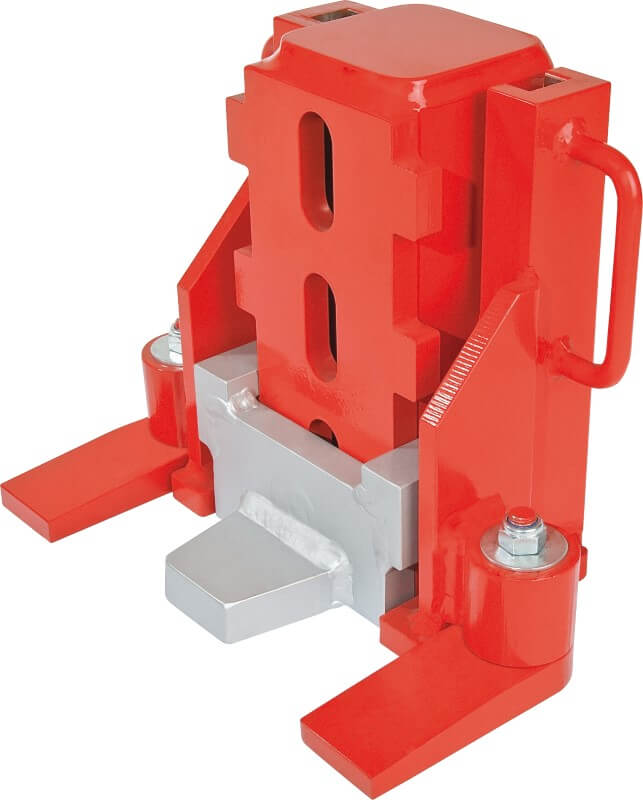

| Type | EJ230-3XR | EJ 300-3XR | EJ500-3XR |
| Part number | 01.250.31.01 | 01.300.31.01 | 01.500.31.01 |
| Capacity (lbs.) | 50,600 | 66,000 | 110,000 |
| Working pressure (bar/psi) | 700/10,000 | 700/10,000 | 700/10,000 psi |
| Claw height (inch) | 1.2" | 1.2" | 1.4" |
| Adjustability (inch) | 3 x 3.9" | 3 x 3.9" | 3 x 4.9" |
| Stroke (inch) | 6.1" | 6.1" | 6.1" |
| Dimensions L x W x H (inch) | 10.6" X 15.4" X 13.0" | 10.6" X 15.4" X 13.0" | 14.8" X 21.4" X 15.9" |
| Weight (lbs.) | 134 | 136 | 363 |
Features
Unlike the ECO-Jack S-Series an external pump is required to operate the ECO-Jack XR-Series which are equipped with an integrated pull back system. This easens and speeds up the lifting process, particularly when using more than one jack simultaneously, or when used in confined work areas. Due to its compact design (without a pump) its weight could be reduced up to 30% and is therefore very easy to handle even in the most extreme circumstances. It is possible for one person to operate and control several ECO-Jack XR-Series simultaneously when used in conjunction with a mechanical or electrical external pump. The ECO-Jack XR-Series is supplied with an integrated pull back system and is operated with 700 bar/10,000 psi technology.
ECO-Jack universal toe jacks feature
- the patented lifting claw. It ensures a safe lifting of heavy goods and can be switched to another position with just one hand without the need of tilting movements.
- an integrated spring return system to pull back the lifted parts in the lowering process.
- a minimal self-weight. Due to improved design and the use of high quality material, the self-weight of the jacks could be reduced up to 30% compared to jacks with integrated pumps.
- precision milled guides made of high resistant and high quality materials. They guarantee a precise lifting and lowering motion, thus ensuring a long product life.
- strong swiveling legs which ensure a safe lifting process and prevent the jack from tipping over.
- an external hose coupler as standard. The drip free male hose coupler enables the user to attach an external pump.
- Due to the side mounted grab handles the positioning of the jack is very easy.
For all cases where a standard product is not sufficient, we offer special tailor made solutions to fit the customers needs.
