| Click an image to enlarge → |  |  |  |
|---|---|---|---|

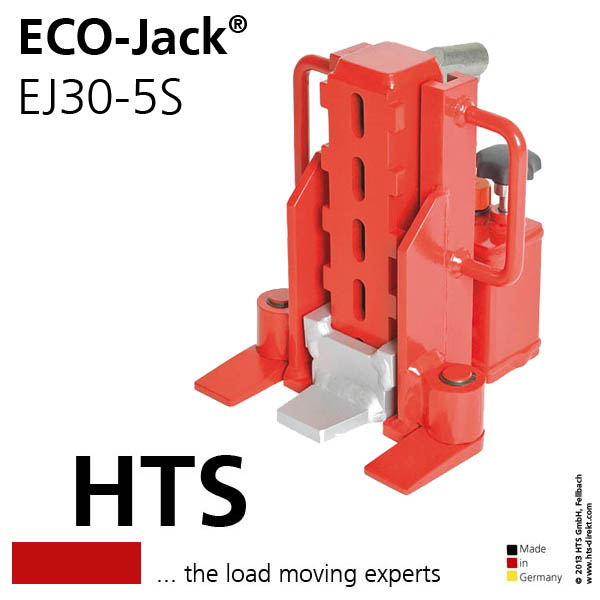

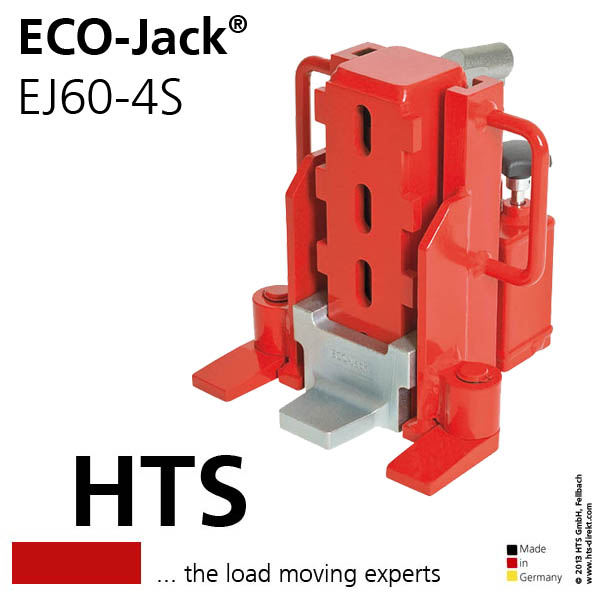

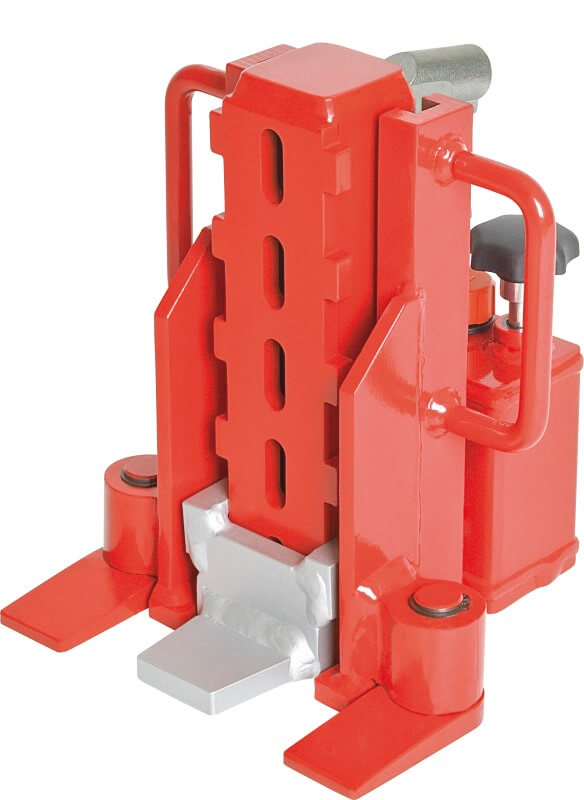

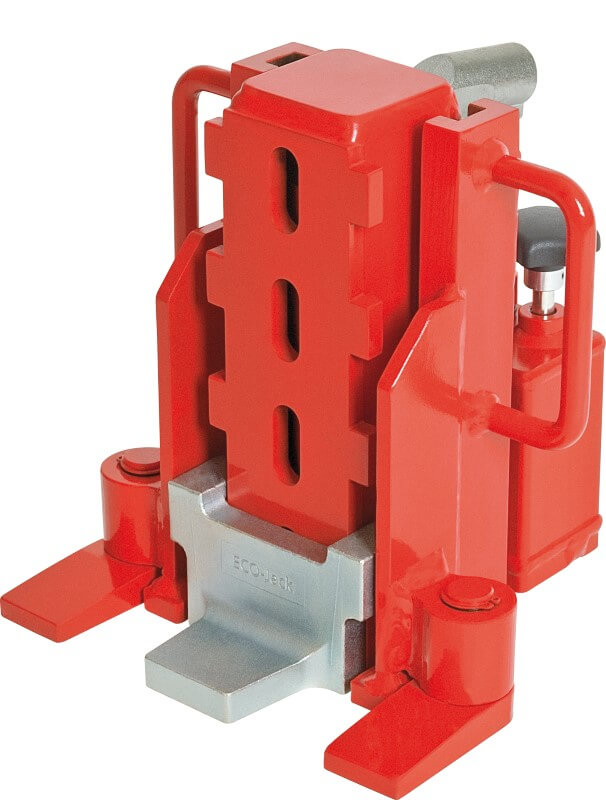

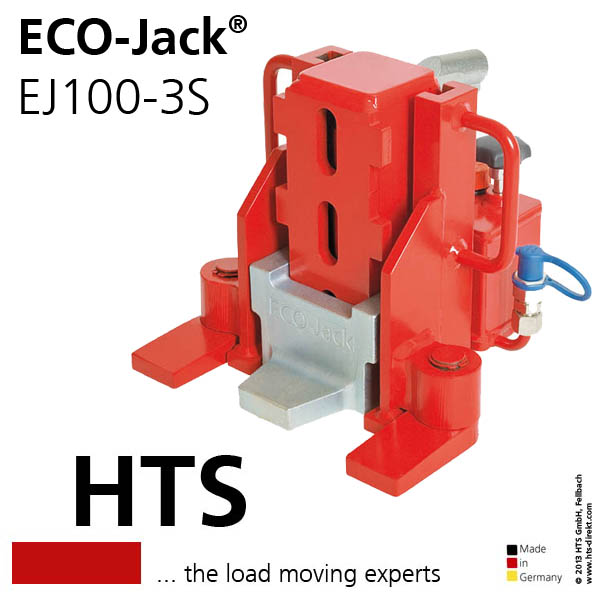

| Type | EJ30-5S | EJ60-4S | EJ100-3S |
| Part number | 01 030 50 10 | 01 060 40 10 | 01 100 31 10 |
| Capacity (lbs.) | 6,600 | 13,200 | 22,000 |
| Working pressure (bar/psi) | 520/7,425 | 520/7,425 | 520/7,425 |
| Claw height (inch) | 0.5" | 0.6" | 0.8" |
| Adjustability (inch) | 5 x 1.8" | 4 x 2.3" | 3 x 2.9" |
| Stroke (inch) | 5.5" | 5.5" | 5.5" |
| Dimensions L x W x H (inch) | 7.8" X 8.1" X 9.8" | 8.5" X 9.0" X 9.9" | 10.7" X 10.9" X 9.8" |
| Weight (lbs.) | 33 | 42 | 62 |
| drawing | drawing | drawing |
| Click an image to enlarge → |  |  |  |
|---|---|---|---|

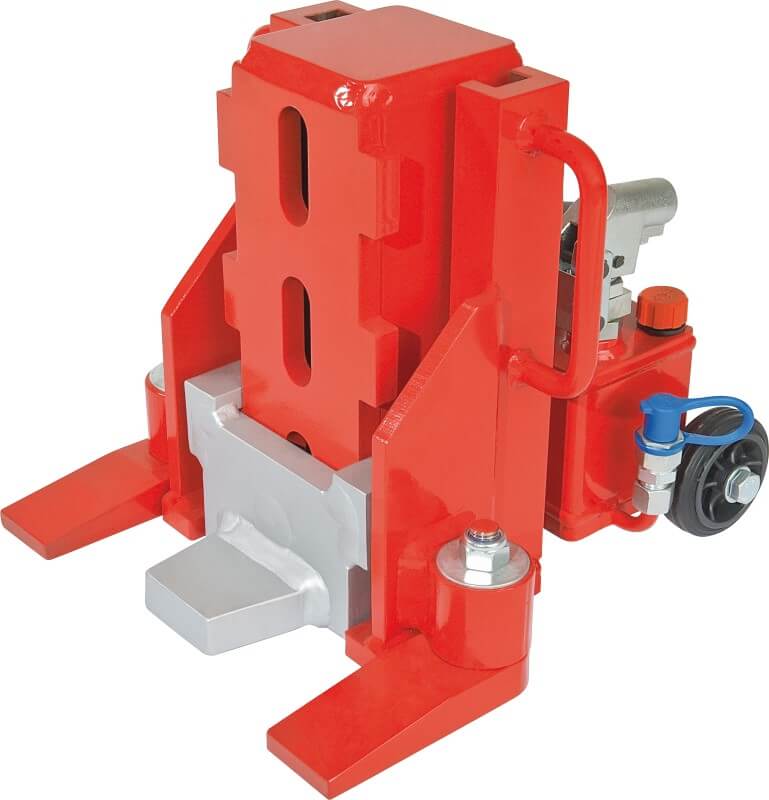

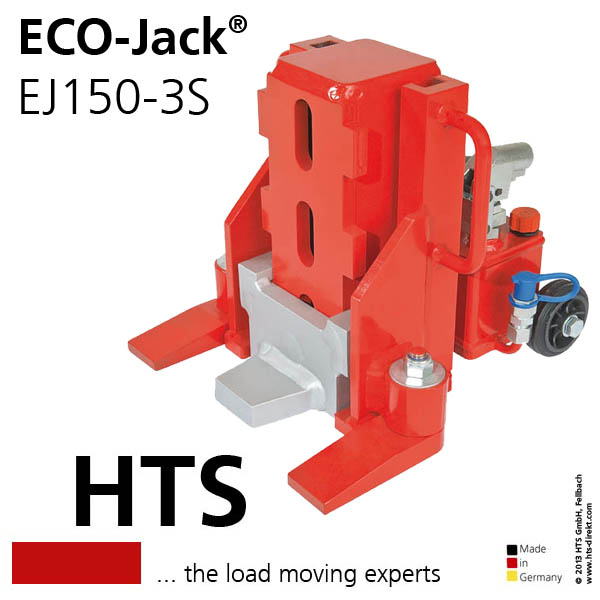

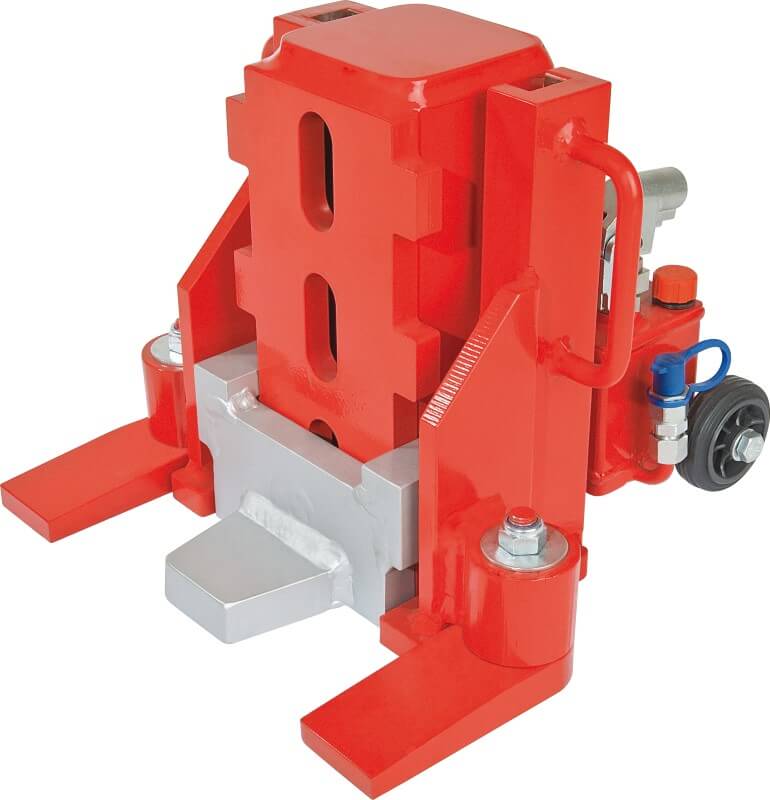

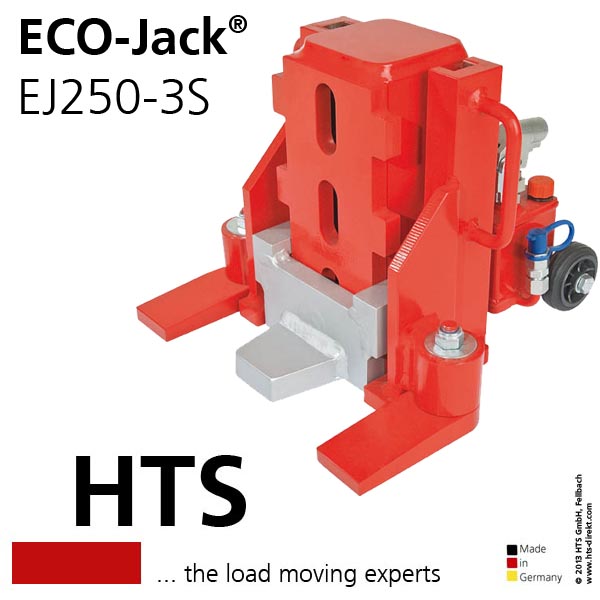

| Type | EJ150-3S | EJ250-3S | CR-Series |
| Part number | 01 150 31 10 | 01 250 31 10 | Find out more about our nickle plated jacks which can be used in clean rooms and the food industry. |
| Capacity (lbs.) | 33,000 | 55,000 | |
| Pressure (bar/psi) | 520/7,425 | 520/7,425 | |
| Claw height (inch) | 1.0" | 1.2" | |
| Adjustability (inch) | 3×3.8" | 3×3.9" | |
| Stroke (inch) | 5.5" | 5.5" | |
| Dimensions L x W x H (inch) | 13.6" X 13" X 12.4" | 15.3" X 15.4" X 13.0" | |
| Weight (lbs.) | 110 | 158 | |
| drawing | drawing |
Features
ECO-Jack universal toe jacks feature
- the patented lifting claw. It ensures a safe lifting of heavy goods and can be switched to another position with just one hand without the need of tilting movements.
- a minimal self-weight. Due to improved design and the use of high quality material, the self-weight of the jacks could be reduced up to 20% compared to other jacks.
- precision milled guides made of high resistant and high quality materials. They guarantee a precise lifting and lowering motion, thus ensuring a longproduct life.
- a release valve, that allows subtle adjustment during the lowering process of an ECO-Jack.
- strong swivelling legs which ensure a safe lifting process and prevent the jack from tipping over.
- an external hose coupler as standard on the jacks with a load capacity of 10 tons and above. The drip free male hose coupler enables the user to attach an external pump.
- Due to the side mounted grab handles the user can use the full stroke with the 225º rotating pump in all positions.
- Twin pump: The ECO-Jack EJ150-3S and EJ250-3S are equipped with a second hydraulic pump. HTS was the first company that introduced a fast stroke on a 15.000 kg capacity jack to the market. This enables the jack to be lifted up to three times faster than normal, when not under load.
For all cases where a standard product is not sufficient, we offer special tailor made solutions to fit the customers needs.
